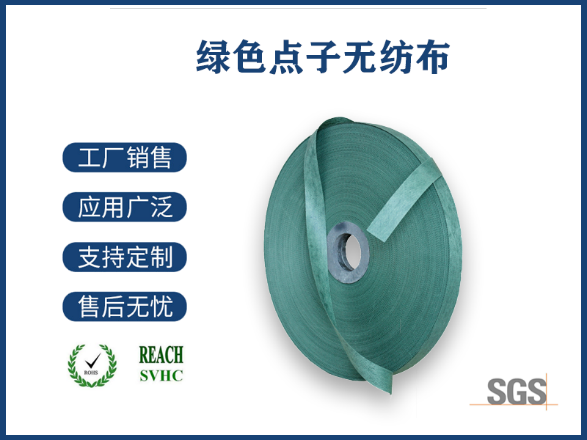

[產品說明]: 壓花點子無紡布是以滌綸纖維為主體，丙綸纖維為粘結擠，經熱軋法科學加工而成。
Product Description: Dot embossed non-woven tape is mainly made of polyester fiber, polypropylene fiber as adhesive agent, and is formed by thermal bonding scientific processing.
[應用方式]: 適合用于全塑電力電纜、控制電纜、通信電纜、光纖電纜、橡套電纜的繞包、芯外扎緊、縱包及墊層使用等。
Application: Suitable for wrapping, tightening ex-core, pitch and cushion in plastic power cables, control cable
s, communication cables, optical cables, rubber-sheathed cable.
一、主要技術指標：
Main specification:
| 產品規格Specification | 伸長率Elongation（%） | 拉伸強度Tensile strength（N/40mm） | 基重Basis weight（g/m2） | 吸水速度Water absorption speed（mm/min） |
| 130±5μm | 15↓ | 120↑ | 70±5 | 0.1↓ |
| 160±5μm | 15↓ | 150↑ | 80±5 | 0.1↓ |
| 200±5μm | 20↓ | 200↑ | 95±5 | 0.1↓ |
| 250±5μm | 20↓ | 250↑ | 105±5 | 0.1↓ |
| 除以上規格外，其它可按客戶特殊要求單獨設計。In addition to the above specifications, other special requirements can design according to customers | ||||
二、顏色：白色和草綠色。
Color: White and grass green
三、電氣特性：壓花點子無紡布比重輕，拉伸力強，由于壓花后增加了摩擦，繞包時不易松脫，適用于繞包速度較快的成纜機用。
Electrical characteristics: light weight, good for tensile strength, due to the embossed increases the friction, it is not easy to loose when wrapped, apply to wrapping with high speed machine.
四、分切及包裝：分切最小寬度為5mm，內孔大小為52mm或76mm；收卷最大外徑為800mm，紙箱包裝。
Slitting and packaging: Slitting minimum width of 5mm, bore size of 52mm or 76mm; the winding maximum outer diameter of 800mm, carton packaging.
